Product Feature
This set of hazelnut cracking shelling machine is suitable for hazelnut processing with large capacity. The shelling rate is 98%, the completeness rate is high, and it is fully automated.
Structure of Hazelnut Shelling Machine Price

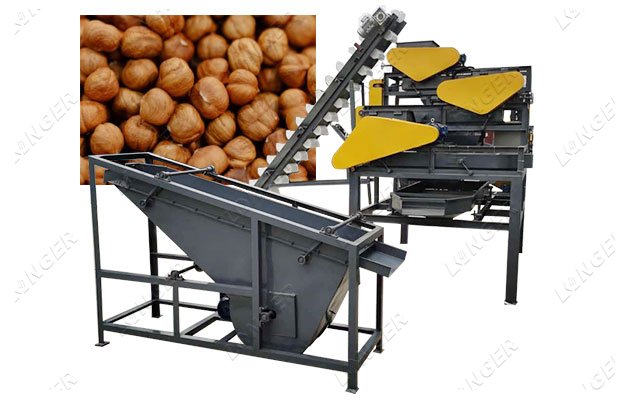

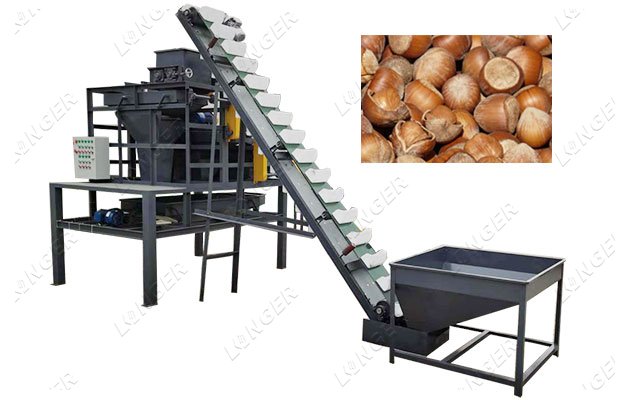

The hazelnut sheller machine is mainly composed of three parts: hoist, shell breaking machine and shell and kernel separator.
1. The hazelnuts enter the screening machine through the elevator, and are divided into three or more levels of large and small, and then enter the three hulling machines for dehulling.
2. The hazelnuts pass through the gaps between the processing rollers at various levels to crush the shell. The shelling gap should be adjusted and matched according to the size of the hazelnut raw materials to achieve clean shelling and complete kernels.
3. The shell and kernel separator separates the hazelnut shell and the kernel, and the kernel is discharged from one material port, and the shell is discharged from the other material port.
Advantages of Hazelnut Cracking Machine for Sale
-
The output can reach 800-1000 kg/h, which is suitable for large hazelnut processing plants and greatly improves production efficiency.
-
Realize fully automatic and continuous processing. Reduce labor costs.
-
The shelling is clean and the shelling rate is as high as 98%.
-
Convenient operation and maintenance, easy to clean.
Precautions:
-
Before using the hazelnut cracker machine, the gap between the processing rollers at all levels is adjusted according to the size of the hazelnuts. According to the size of the hazelnuts in the flat direction, there are roughly three levels.
-
According to the size of the hazelnut in the flat direction, adjust the gap size of the first, second and third stage processing rollers in turn. The gap between the pressing rollers should be 1-1.5mm smaller than the hazelnut deflection size.
|
Name |
Power(kw) |
Dimension(mm) |
Qty |
|
Feeding Hopper and Elevator |
0.75 |
2800*600*2600 |
1 |
|
Hazelnut Shelling Machine |
8 |
2200*1750*2500 |
1 |
|
Elevator |
0.75 |
1800*600*1600 |
1 |
|
Kernel and Shell Separator Machine |
2.2 |
2500*750*1500 |
2 |
