Product Feature

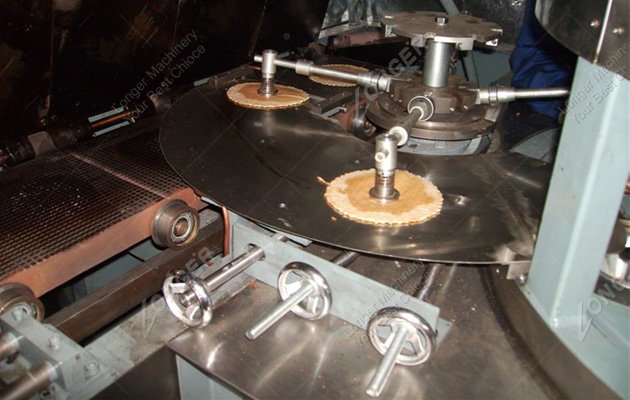

Introduction of automatic ice cream waffle bowl making machine
This full automatic waffle ice cream cone(bowl shape) making machine is used for making crisp bowl shape ice cream cup, bowl shape ice cream cup size can be customer-made.
The full automatic line includes oven, conveyor, counting system, and raw material feeding bucket.
Features of Automatic Crisp Bowl Shape Ice Cream Cup Making Machine
The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas). The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting. We can design the different baking machines to make different types of sugar rolled cones as required by clients. The same machine can make bowl-shaped cup with different specifications and shapes with changing the different molds. Automatic adjuster for top position for the natural heated cone (to make the cone neatly arranged)
Model |
Dimension |
Drive Motor |
Air blower |
Gas Consumption |
Capacity |
Weight |
LG45*2-12W |
8.5*2.2*1.73 |
1.5KW |
1.1KW |
6-7 kg |
3500-4500 |
4800 |
LG7937-12B |
7.05*2.2*1.73 |
1.5KW |
1.1KW |
5-6kg |
2500-3500 |
4200 |
LG53-12W |
7.6*2.2*1.73 |
1.5KW |
1.5KW |
8-10kg |
2000-3000 |
4600 |
LG45-10W |
6.6*2.2*1.73 |
1.5KW |
1.5KW |
6-7kg |
1800-2300 |
4000 |
LG37-8W |
5.8*2.2*1.73 |
1.5KW |
1.1KW |
5-6kg |
1500-2000 |
3600 |
