Almond Processing Equipment
Almond Sheller Peeler Machine
Shelling Peeling Machine for Hazelnut
>
<

Industrial Almond Sheller Peeler Equipment

  • Material: Almond, Hazelnut,palm, etc
  • Capacity: 2-3 tons per hour
  • Loading Port: Qingdao Port
  • Description: This equipment is suitable for large capacity almond shelling peeling processing, suitable for remove hard shell from almond, hazelnut, palm, etc.
  • Chat on line Leave Message

Product Feature

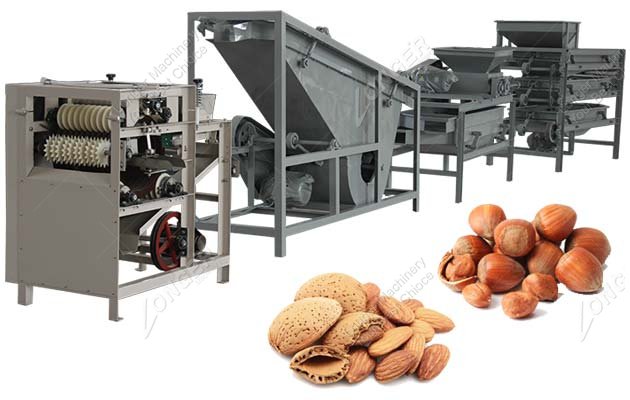

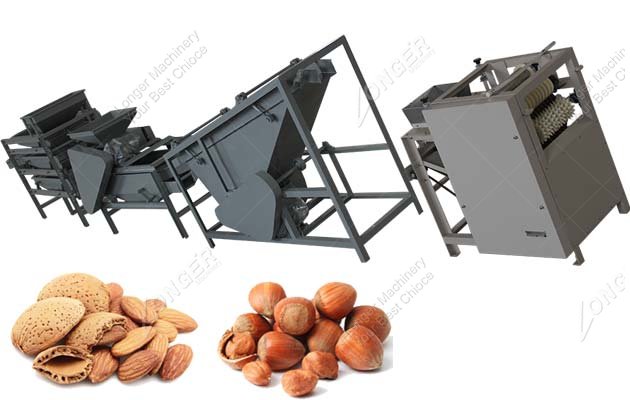

Introduction for Almond Sheller Peeler Processing Equipment
The almond sheller equipment is suitable for large shelling production for almond, hazelnut, palm, etc, high hulling clean rate, high complete kernel rate, easy to operate and clean, the ideal choice for large almond or other nuts processing enterprises to improve efficiency, reduce cost.

Almond Processing Equipment LineProcessing Flow for Almond Cracking Shelling and Peeling
1, Raw material, like almond, hazelnut, palm, etc by the elevator into sieving machine (flat screen or drum screen fro selection) separate size three or more levels, through divided hopper respectively into three hulling machine for shelling.
2, The shelling clearance of huller machine better is adjusted correspondingly according to volume of raw materials, to reach nut shell clean and complete, almond after shelling, shell and kernel respectively into three Shell kernel separator.
3, Shell and kernel separator separate the shell and the kernel, a mouth out of nuts, another mouth out of their shells.
4, The loading screening machine screen impurities and broken shells, quantitativly feeding immerse into the machine.
5, Nuts soaking machine through automatic constant temperature system soak nuts kernel, feeding and discharging automatically.
6, Wet almond skin peeling machine is used to peel the skin of nuts.
7, After peeling, the nuts through air drying, artificially pick out nuts that are not peeled clean, feeding into the elevator.
8, Nuts through the hoist enter dry cooling all-in-one low temperature drying and cooling, nut products is under normal temperature, can pack material directly.

According to the volume of production, raw material size, we can design this almond shelling peeling machine equipment. This production line plays an important role in almond butter production line, the early stage for processing almond butter.

Hoist
 		 Dimension: 0.6*0.6*6.5m
Power: 0.75kw
Voltage: 380v/50hz		 1 set
Drum Grading Machine
 		 Dimension: 5.5*1.1*2.5m
Voltage: 1.5kw/380v/50hz		 1 set

Divided Hopper Dimension: 2*0.7*1.3m 1 set
Shelling Machine Dimension: 3.5*0.9*1.3m
Power: 3kw
Voltage: 380v/50hz
Weight: 280kg 		 3 set
Shell Kernel Separator Dimension: 3.2*0.9*1.6m
Power:1.5kw*2set
Voltage: 380v/50hz  		 3 set
Quantitative feeding machine Dimension: 2.5*0.9*1.6m
Power:1.5kw*2set
Voltage: 380v/50hz		 3 set
Soaking Machine
 		 Power:45kw
Voltage:380V/50hz
Dimension:2* 1*1.4m
Stainless steel		 3 set
Wet Peeling Machine
 		 Capacity:180-220kg/h
Power:0.75KW
Voltage:380V
Peeling Rate: 98%
Weight: 260KG		 4 set
Air Drying Conveyor Dimension:3*0.6*0.9m
Motor Power: 0.75KW
Fan Power: 0.55KW*3
Voltage:380V/50HZ		 2 set
Lifting Machine Dimension:2.8*0.7*2.m
Vibration Power:0.5kw
Lifting Power:0.75kw
Voltage:380V/50HZ		 1 set
Drying Cooling Machine
 		 Size: 8*2.1*2.3m
Coal Gas:15-20kg/h
circulating fan:4kw
Cooling Power: 4kw
Power:0.37kw
Voltage: 220v/0.15kw
Electric Power: 90KW
Capacity:500-600kg		 1 set
