Automatic wafer biscuit making machine line has two models for selection, gas heating and electric heating. The baked wafer cake has uniform color and shape, the finished wafer cream spreading evenly daub, cutting straight; Machine with smooth operation, no abnormal noise. This production line has a reliable performance, high output, low energy consumption, convenient maintenance, simple operation, no pollution, etc. All food contact part adopts 304 stainless steel, food grade PU belt, conform to the health and safety standards.



Characteristics and function of Wafer Biscuit Production Line

. According to the needs of users, create a variety of wafer cake slices with different sizes and different depth pattern.

. According to needs of users to create various shapes of different wafer biscuit, such as: ball, square type, form, etc.

. Full automatic production process. The whole production line need only four staff operating management.

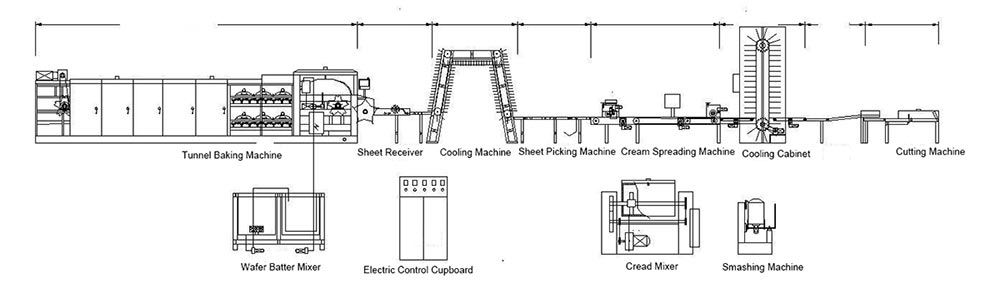

Following is the Wafer Biscuit Production Process:

. Number of Heating Plate:21, 27, 33, 39, 45, 51, 57, 63, 69, 75 and so on.

. Size of Baking Plate: 470*325 mm

. The plate pattern: 2.5*2.5*0.9, 3.0*3.0*0.9 different shapes and patterns

. Output: 6 ~ 40 / minutes

. material: shell adopts 304 stainless steel, Siemens, Mitsubishi control, SKF bearing, high temperature SEW Motor, the Italian burning system.

. Baking sheet material: gray cast iron, special steel, copper.

. Thickness of Biscuit Slice: 2.0 mm to 5.0 mm

. Baking plate temperature adjustable: normal temperature up to 200.

Working Video of Wafer Biscuit Making Machine:
